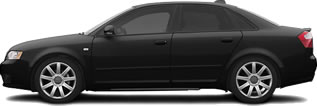

Internally designated Type 8E, it rides on the Volkswagen B6 (PL46) platform. The car's styling was inspired on the C5 (second-generation) Audi A6.

The longitudinally placed 1.8 liter 20-valve turbo utilizes a BorgWarner KKK K03 series turbo charger with integrated waste gate that is feeding the engine through a single side-mount air-to-air charge air cooler. The engine is equipped with 299cc/min fuel injectors operating at a fuel pressure of 3 bar. The factory installed 2.25" turbo back exhaust system with catalytic converter is a major restriction.

AutoSpeed offers 2 solutions for Stage 1 customers.

Stage[1] - Stock Hardware

Stage[1Plus] - Big Injectors

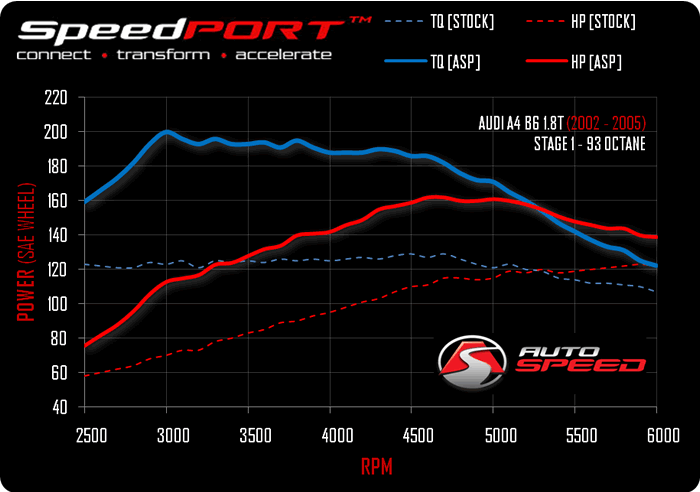

Stage[1] consists of a software upgrade only, no additional parts are required. The software is calibrated to maximize performance while operating within the stock fuel injectors' flowrates and stock turbo efficiency range. The longitudinally placed 1.8 liter 20-valve turbo utilizes 299cc/min fuel injectors, compared to 317cc/min fuel injectors equipped in the transverse version. The smaller injectors become a limitation when trying to run higher boost pressures.

Tune Specifics:

Peak Boost 17psi to 8psi by redline, Rev limiter set to 7200rpm, Speed limiter removed

Profiles include:

Stock, 91, 93, Race*, Valet and AntiTheft

Profile	CRANK	WHEEL
Profile	TQ/HP	TQ/HP
Stock	166/170	129/123
91	250/205	181/148
93	276/224	200/162
Race*	315/252	228/182

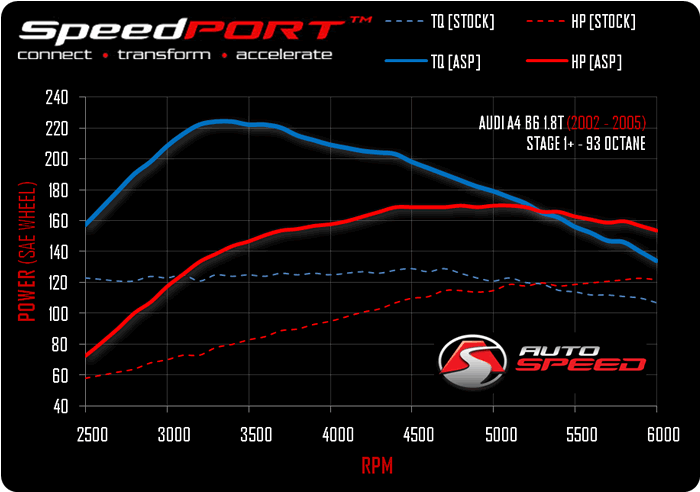

Stage[1Plus] software requires a hardware upgrade consisting of 372cc/min fuel injectors from the Audi TT 225 HP engine or equivalent 380cc (not included in price). The additional fueling provides additional head room and allows for a higher boost level over 4000rpm, where the stock 299cc fuel injectors become fully saturated running potentially unsafe injector duty cycles.

Tune Specifics:

20psi Peak Boost to 11psi by redline, Rev limiter set to 7200rpm, Speed limiter removed, Multifunction Display recalibrated to correctly display mpg consumption

Profiles include:

Stock, 91, 93, Race*, Valet and AntiTheft

Profile	CRANK	WHEEL
Profile	TQ/HP	TQ/HP
Stock	166/170	129/123
91	252/209	182/151
93	310/235	224/170
Race*	346/264	250/191

*Race mode requires a minimum octane rating of 104 [R+M]/2. Running less than 104 may result in severe engine damage

**Note Power Graphs are created from actual testing performed on our in-house dynamometer and are available upon request

***Actual power results may vary depending on condition of vehicle, physical hardware and fluctuations in fuel quality and octane
