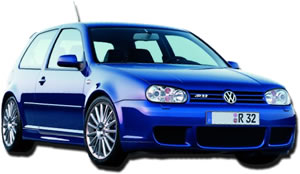

Internally designated Type 1J, it rides on the Volkswagen A4 (PQ34) platform. The car’s styling differed little from the concept.

The transversly placed 3.2 liter 24-valve VR6 utilizes a very sophisticated chain drive mechanism to rev all the way up to 6700rpm. The engine is equipped with 282cc/min fuel injectors operating at a fuel pressure of 4 bar. The factory installed 2.5" exhaust system with catalytic converter is a major restriction.

AutoSpeed offers 2 solutions for Stage 1 customers.

Stage[1] - Stock Hardware

Stage[2Plus] - Cams and Performance Exhaust

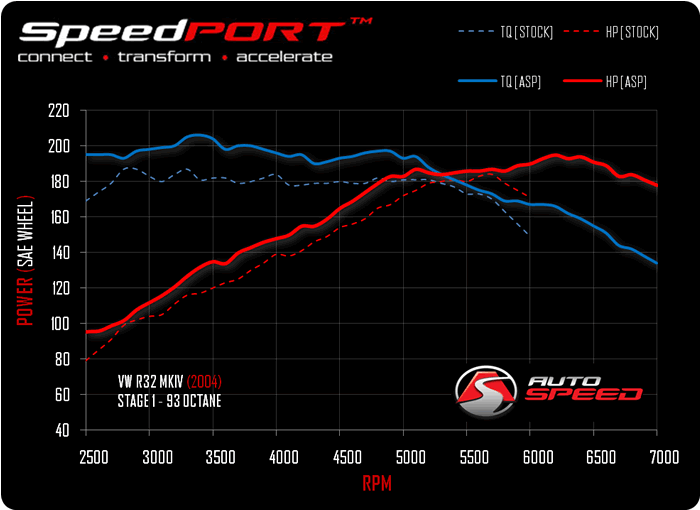

Stage[1] consists of a software upgrade only, no additional parts are required. The software is calibrated to maximize performance while operating within the stock fuel injectors' flowrates.

Tune Specifics:

Rev limiter set to 7000rpm, Speed limiter removed, Remapped Electronic Throttle Body.

Profiles include:

Stock, 91, 93, Race*, Valet and AntiTheft

Profile	CRANK	WHEEL
Profile	TQ/HP	TQ/HP
Stock	236/240	187/184
91	NA/NA	NA/NA
93	269/254	206/195
Race*	NA/NA	NA/NA

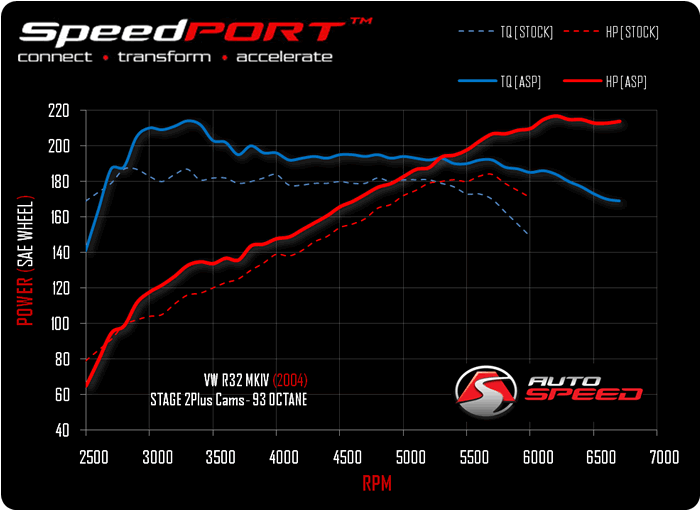

Stage[2] software requires a hardware upgrade consisting of an ASP exhaust system and cams (not included in price). The additional flow provides less back pressure and allows for better breathing. The software is calibrated to maximize performance while operating within the stock fuel injectors' flowrates.

Tune Specifics:

Rev limiter set to 7000rpm, Speed limiter removed, Remapped Electronic Throttle Body.

Profiles include:

Stock, 91, 93, Race*, Valet and AntiTheft

Profile	CRANK	WHEEL
Profile	TQ/HP	TQ/HP
Stock	236/240	187/184
91	NA/NA	NA/NA
93	279/283	214/217
Race*	NA/NA	NA/NA

*Race mode requires a minimum octane rating of 104 [R+M]/2. Running less than 104 may result in severe engine damage

**Note Power Graphs are created from actual testing performed on our in-house dynamometer and are available upon request

***Actual power results may vary depending on condition of vehicle, physical hardware and fluctuations in fuel quality and octane
